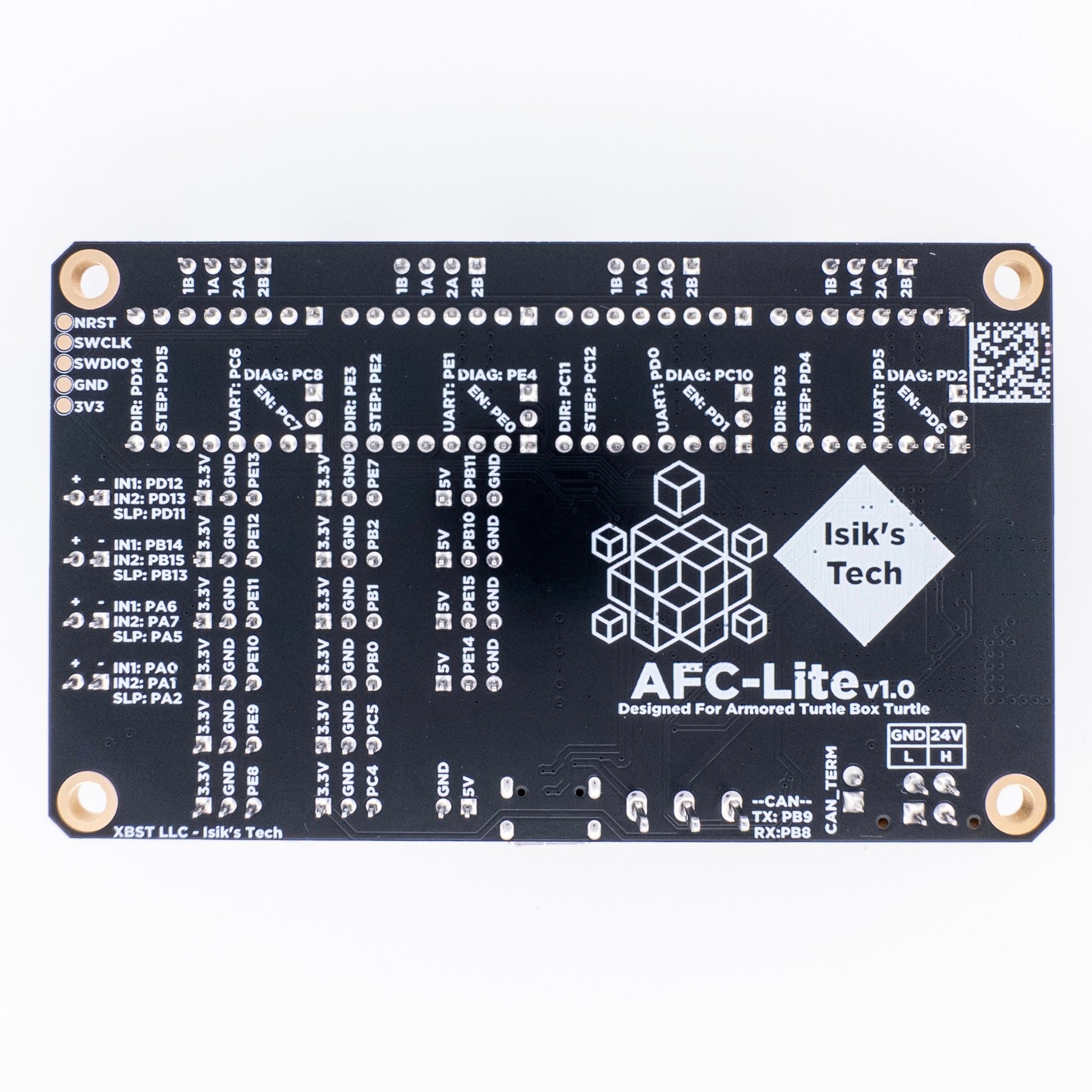

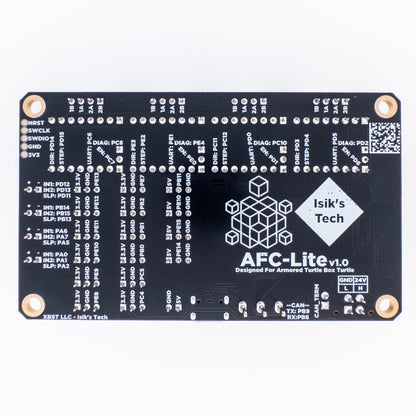

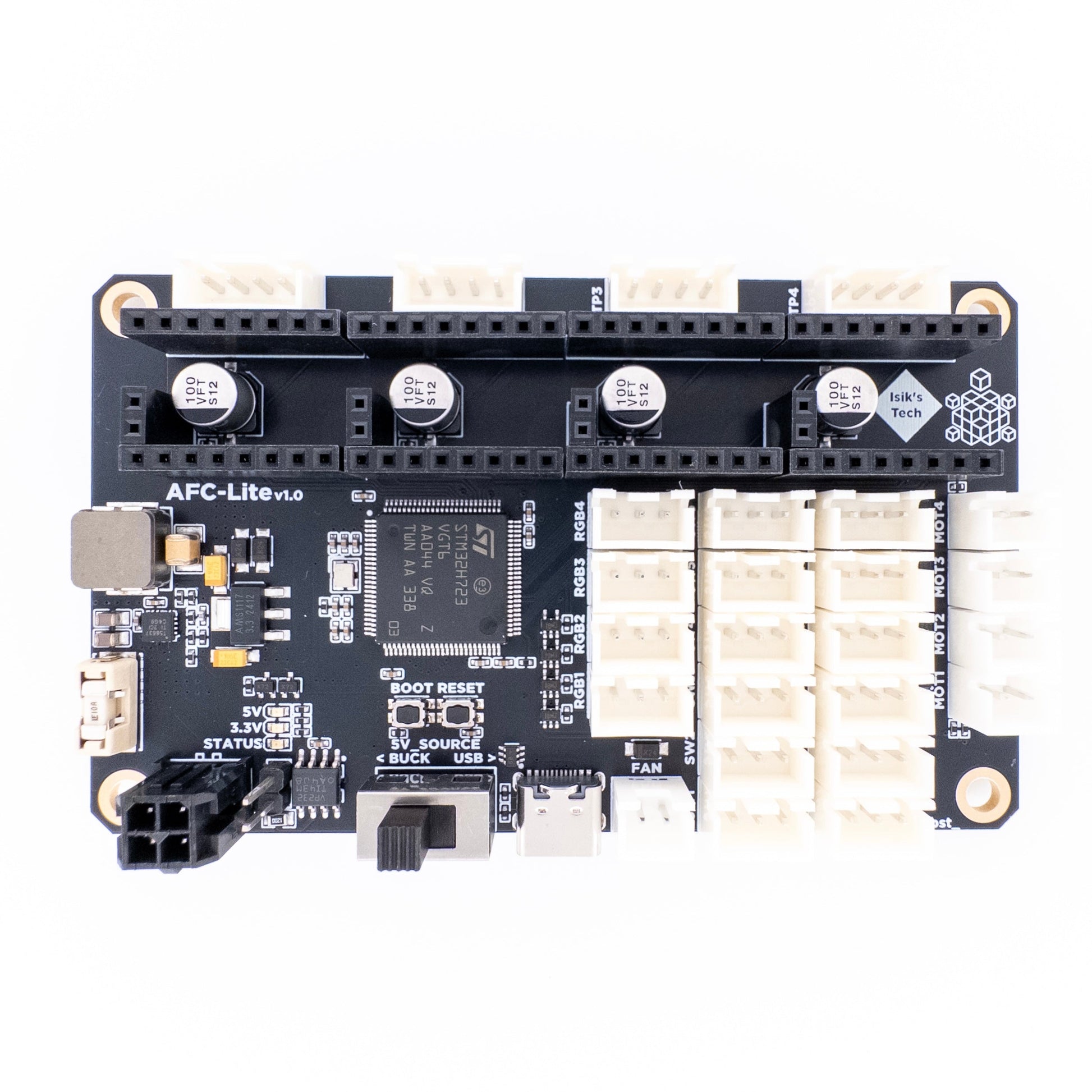

AFC-Lite - Box Turtle Controller PCB

AFC-Lite is a PCB designed for Armored Turtle's Box Turtle system. It features:

• 4x Stepstick Slots for TMC2209-based Stepsticks
• 4x Brushed DC Motor Drivers
• 4x RGB LED Connectors
• 12x Endstop Connectors
• 1x 5V Fan Connector (No Speed Control)
• STM32H723 MCU
• USB and CAN Support
• 5V Buck Converter

GitHub Repository of the project: https://github.com/xbst/AFC-Lite/

GitHub Repository of Box Turtle: https://github.com/ArmoredTurtle/BoxTurtle/

MX3.0 and XH connectors are included. Stepsticks aren't included.
